Module 1: No-Slack® Preventive Maintenance

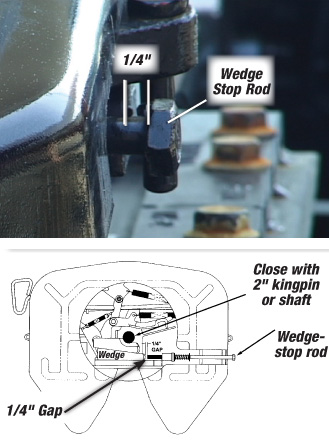

Wedge stop rod setting

Push on the wedge stop rod. (Extends from the side of the top plate and looks like the head of a bolt). It should move in 1/4" with hand pressure, then spring back. To obtain a proper setting, turn the wedge stop rod clockwise to reduce the dimension and counter-clockwise to increase it. Adjust until the free travel is 1/4". This will allow the automatic slack adjustment feature of the Fontaine fifth wheel to function properly.

<..........>
