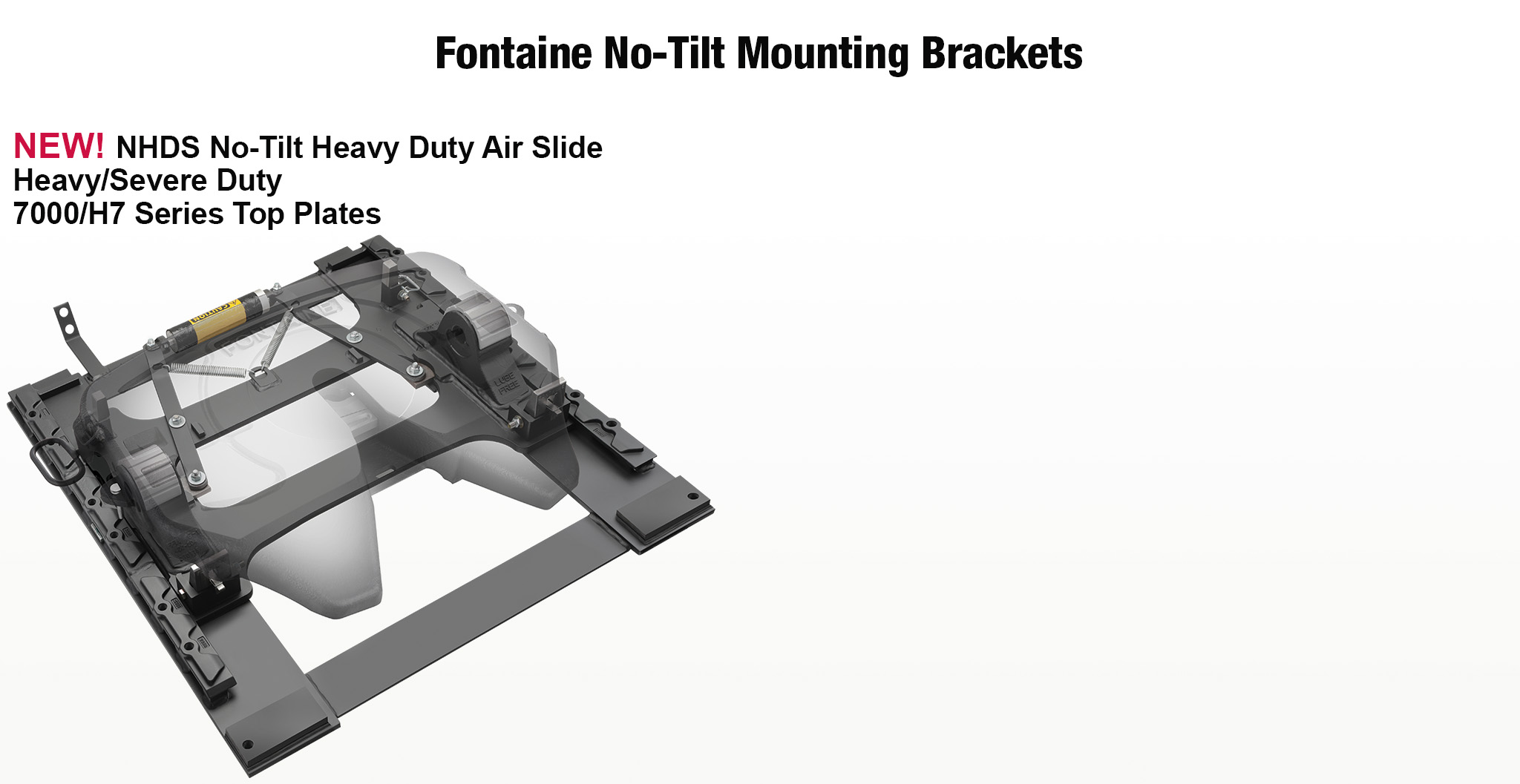

- Easy to operate–simply disengage four stops to switch from a No-Tilt to a rocking fifth wheel. Quick. Easy. NO TOOLS.
- Great solution for frameless dump applications–handles the toughest loads with improved stability on the road and at the job site
- Air slide makes it easy to reposition the fifth wheel to balance your load
- Air cylinder drives a mechanical linkage to release the slide locking wedges–operates in a closed position to protect the stainless steel shaft from corrosion, bending and roadspray
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Available in a wide range of mounting heights and travel lengths to meet your hauling needs.
View No-Tilt Flyer (English) Español Françios
- Easy to operate–simply disengage four stops to switch from a No-Tilt to a rocking fifth wheel. Quick. Easy. NO TOOLS.
- Great solution for frameless dump applications–handles the toughest loads with improved stability on the road and at the job site
- Brackets are welded to a 5/8" steel plate that has six bolt holes on each side at 37-1/4" bolt hole centers
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Two-piece bushing improves shock absorption and provides better support View No-Tilt Flyer (English) Español Françios

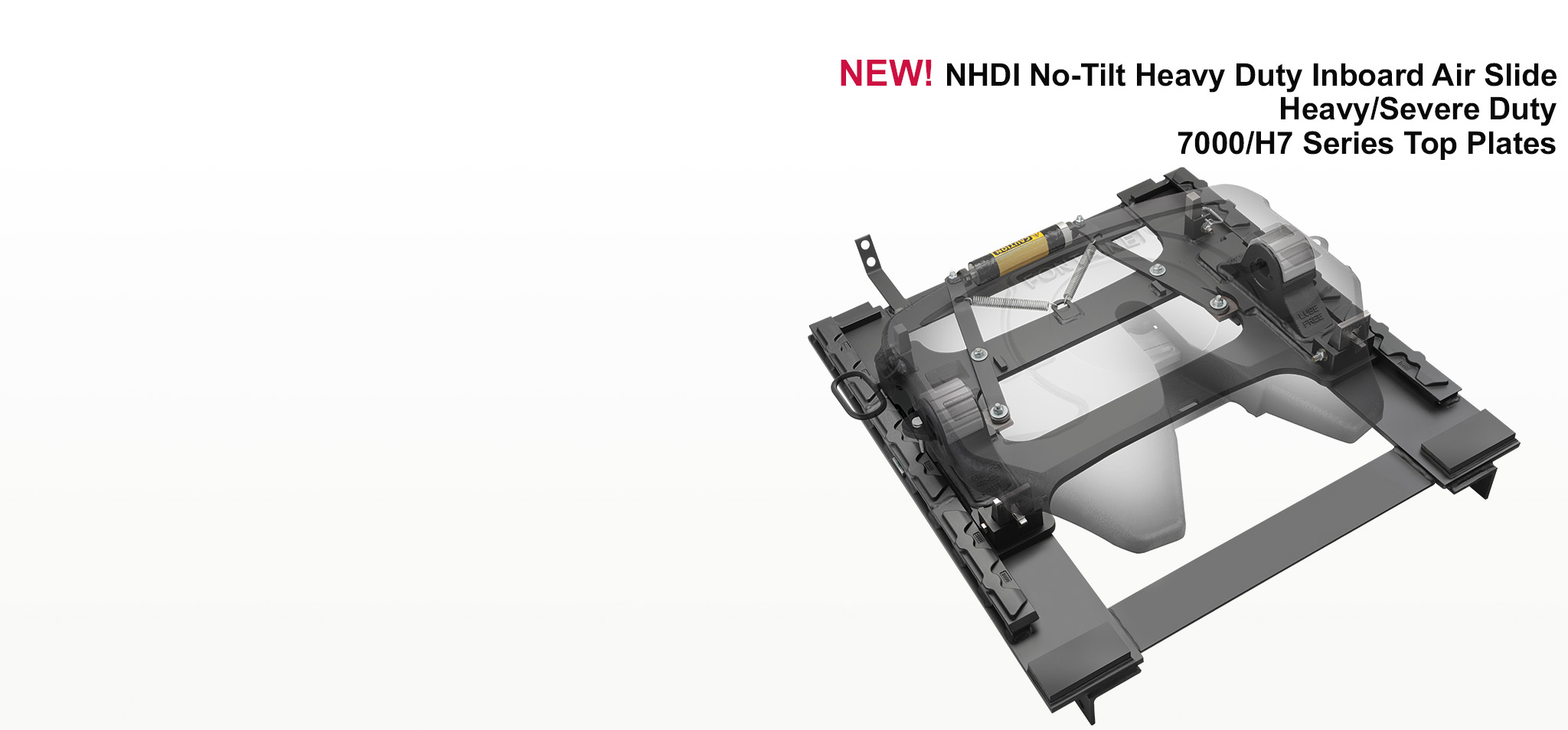

- All of the same great features as the NHDS except it mounts INBOARD of the chassis mainbeams
- Easy to operate–simply disengage four stops to switch from a No-Tilt to a rocking fifth wheel.
- Great solution for frameless dump applications providing improved stability on the road and onthe job
- Air cylinder drives a mechanical linkage to release the slide locking wedges–operates in a closed position to protect the stainless steel shaft from damage
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Available in a wide range of mounting heights and travel lengths to meet your hauling needs.
View No-Tilt Flyer (English) Español Françios
Note: HDI and NHDI (No-Tilt) inboard slide models are first fit assemblies only and are not available through the Fontaine Fifth Wheel aftermarket at this time. Expected availablity is Q1 2023.
- Easy to operate–simply disengage four stops to switch from a No-Tilt to a rocking fifth wheel. Quick. Easy. NO TOOLS.
- Great solution for frameless dump applications– handles the toughest loads with improved stability on the road and at the job site
- Brackets are welded to a 5/8" steel plate that has six bolt holes on each side at 38" bolt hole centers
- New greaseless bracket liner gives you consistent lubrication, reduces wear (no metal-to-metal contact) and cuts maintenance costs
- Two-piece bushing improves shock absorption and provides better support
View No-Tilt Flyer (English) Español Françios
